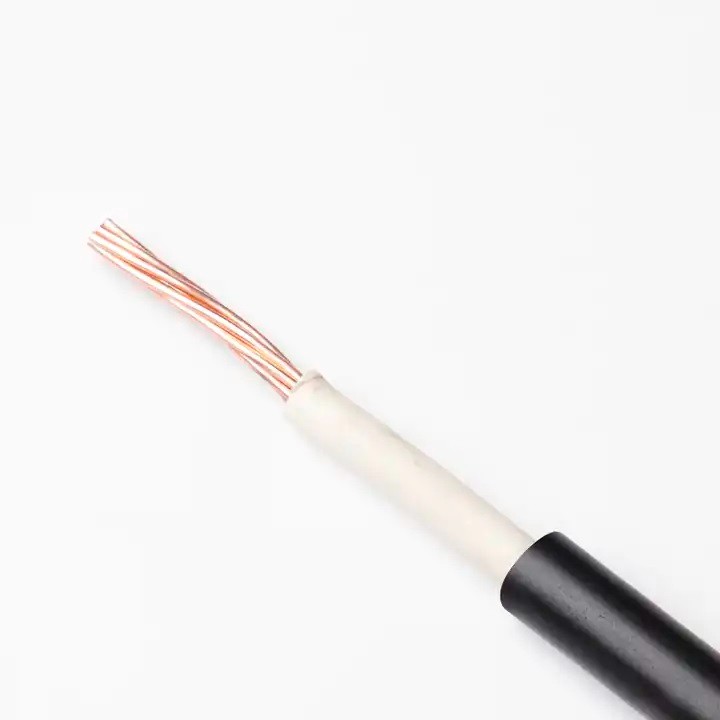

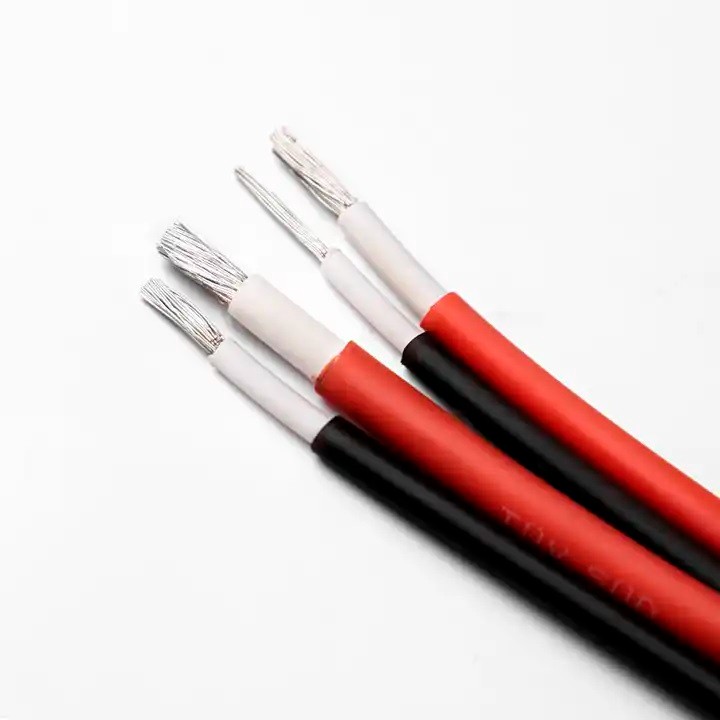

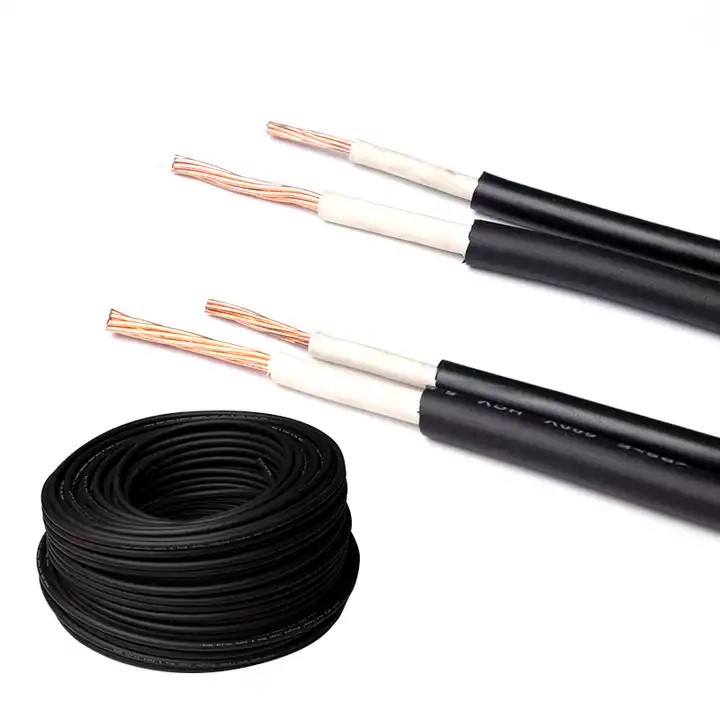

PV Wire UL 4703 12AWG 10AWG 8AWG
Products Description
solar cable is used for free movement or fixed installation in solar installations.This cable can be used indoors,outdoors,underground, in explosion-hazardous areas of industry and agriculture. solar cable is sunlight, ozone, UV, and moisture resistant.
Photovoltaic Wire (PV Wire) may be used as wiring for solar panels, as the interconnection wiring of grounded and ungrounded solar power systems.
Application
Mainly used in wiring of solar power system with earth or no earth.
Construction

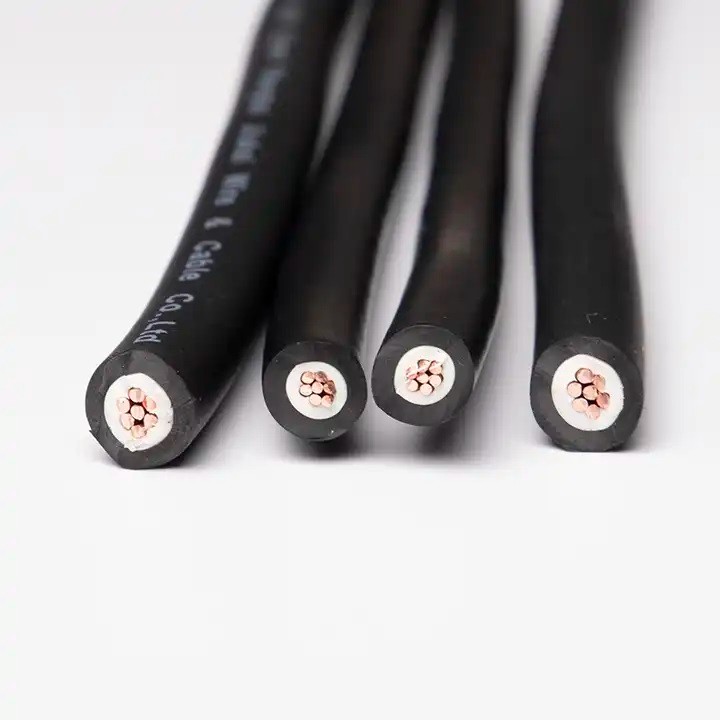

Conductor: Stranded bare copper or tinned copper, electrical property & Structure in accordance with ASTMB33 or ASTM B172 flexible conductor requirement Insulation: ROHS thermosetting insulation material,prior color black or as per customer's request.
Outer Sheath: LSZH & UV-resistant electron-beam cross-linked thermosetting Polyolefin copolymer ROHS material, prior color black or as per customer's request.
Material Properties /Standards
Fire-resistant Performance:UL1581 VW-1
Low-Temperature Properties: UL854
Stability Factor: UL854
UV Resistant: UL2556
Executive Standard:UL4703
Techniugue Specification
Nominal Voltage:600V(AC)、1000 V(AC) 2000 V(AC)
Test Voltage:U=600V
18-10AWG U0=3000V 50HZ 1min
8-2AWG U0=3500V 50HZ 1min
1-4/0AWG U0=4000V 50HZ 1min
1000 V (AC) 2000 V (AC)
18-10AWG U0=6000V 50HZ 1min
8-2AWG U0=7500V 50HZ 1min
1-4/0AWG U0=9000V 50HZ 1min
Temperature Rating: Working Temperature -40℃~+90°C, max conductor Temperature 125°C,Allowable short circuit temperature200°C in 5 second.
Service Life: Expected life span≥25 years
Bending Radius: Fixed installation>4D, Occasionally moved>5D
The product's detailed description please refer to the specification for approval.
Advantages
Electron-beam cross-linked compounds.
UV,ozone and hydrolysis resistant.
High temperature resistant,the materials do not meit or flow.
Good cold flexibility.
Very long service life＞25 years at 90°C.
Products Description
solar cable is used for free movement or fixed installation in solar installations.This cable can be used indoors,outdoors,underground, in explosion-hazardous areas of industry and agriculture. solar cable is sunlight, ozone, UV, and moisture resistant.
Photovoltaic Wire (PV Wire) may be used as wiring for solar panels, as the interconnection wiring of grounded and ungrounded solar power systems.
Application
Mainly used in wiring of solar power system with earth or no earth.
Construction
Conductor: Stranded bare copper or tinned copper, electrical property & Structure in accordance with ASTMB33 or ASTM B172 flexible conductor requirement Insulation: ROHS thermosetting insulation material,prior color black or as per customer's request.
Outer Sheath: LSZH & UV-resistant electron-beam cross-linked thermosetting Polyolefin copolymer ROHS material, prior color black or as per customer's request.
Material Properties /Standards
Fire-resistant Performance:UL1581 VW-1
Low-Temperature Properties: UL854
Stability Factor: UL854
UV Resistant: UL2556
Executive Standard:UL4703
Techniugue Specification
Nominal Voltage:600V(AC)、1000 V(AC) 2000 V(AC)
Test Voltage:U=600V
18-10AWG U0=3000V 50HZ 1min
8-2AWG U0=3500V 50HZ 1min
1-4/0AWG U0=4000V 50HZ 1min
1000 V (AC) 2000 V (AC)
18-10AWG U0=6000V 50HZ 1min
8-2AWG U0=7500V 50HZ 1min
1-4/0AWG U0=9000V 50HZ 1min
Temperature Rating: Working Temperature -40℃~+90°C, max conductor Temperature 125°C,Allowable short circuit temperature200°C in 5 second.
Service Life: Expected life span≥25 years
Bending Radius: Fixed installation>4D, Occasionally moved>5D

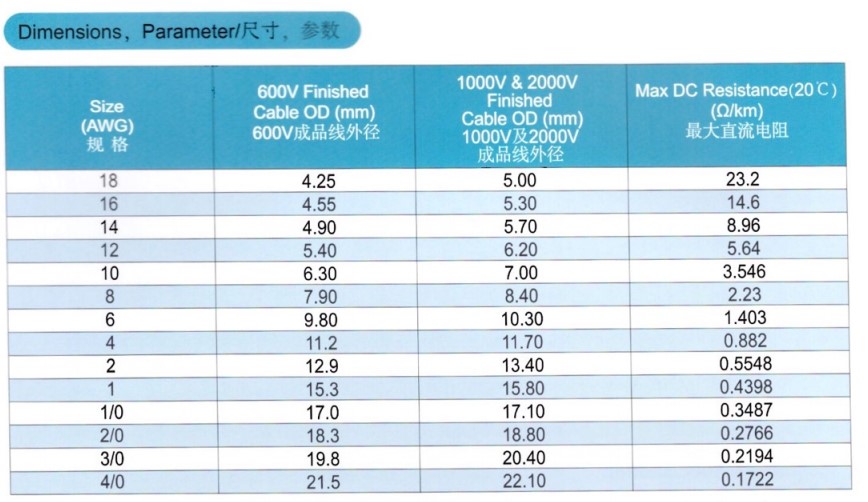

Dimensions, Paramenter
The product's detailed description please refer to the specification for approval.
Advantages
Electron-beam cross-linked compounds.
UV,ozone and hydrolysis resistant.
High temperature resistant,the materials do not meit or flow.
Good cold flexibility.
Very long service life＞25 years at 90°C.
Compatible to all popular connectors.

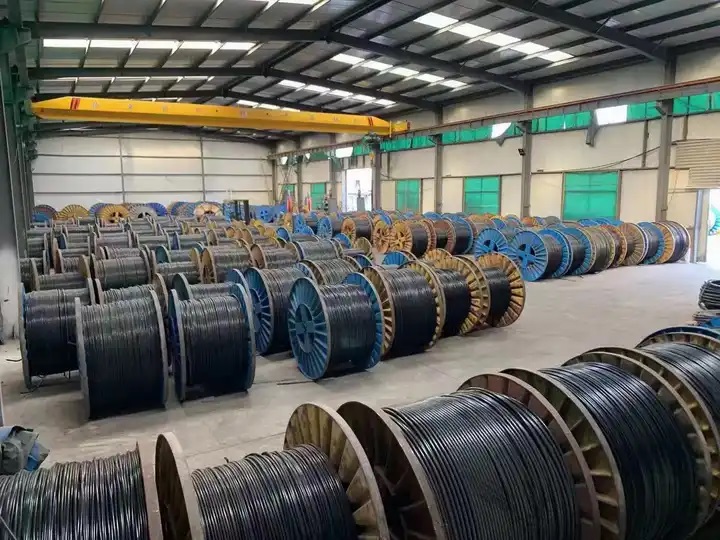

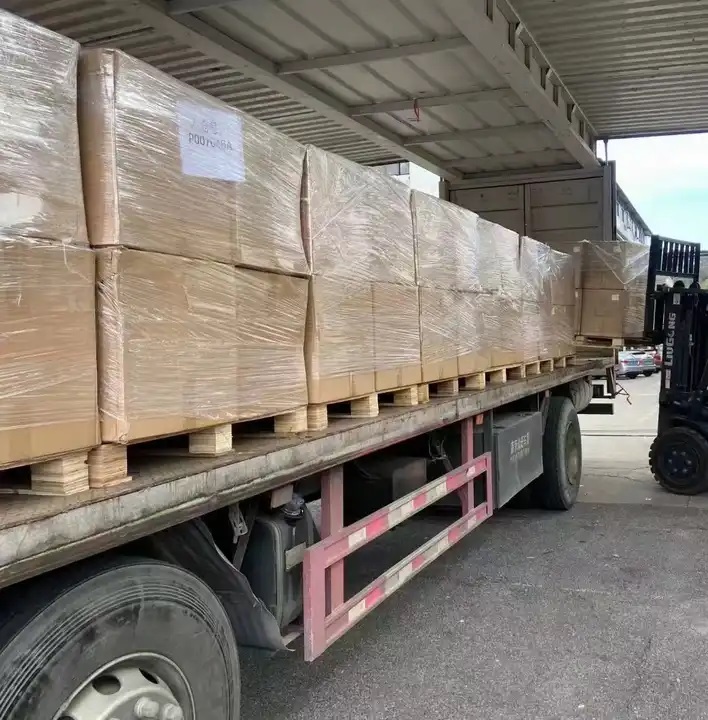

Packaging and delivery
Rating Voltage
600V(AC)、1000V（AC)、2000V（AC)、
Temperature
-40°C--+90°C
Max.Temperature at Conductor
125°C
Protection Class
Ⅱ
Conductor
Tinned annealed copper/Stranded bare copper
Insulation
XLPO,or as per customer's request
jacket
LSZH,black or red
Certification
UL/TUV
