Description

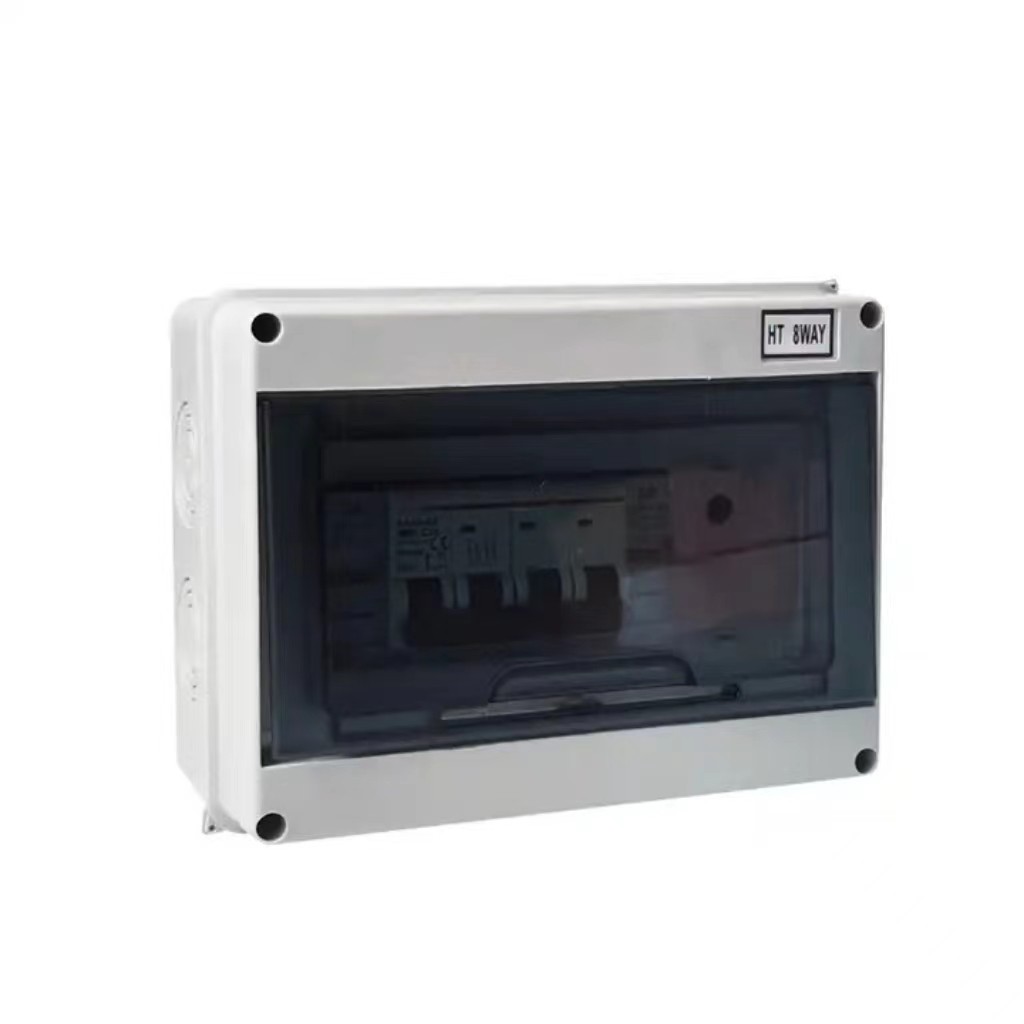

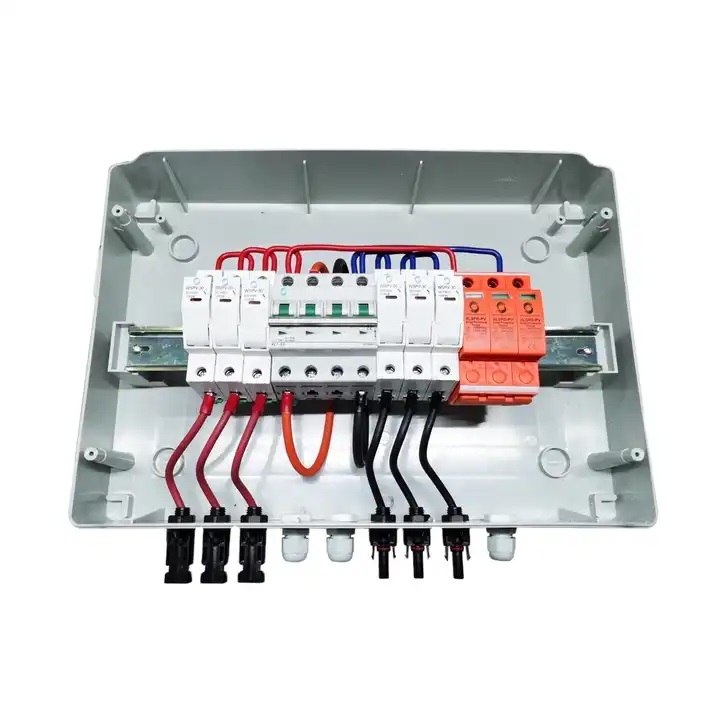

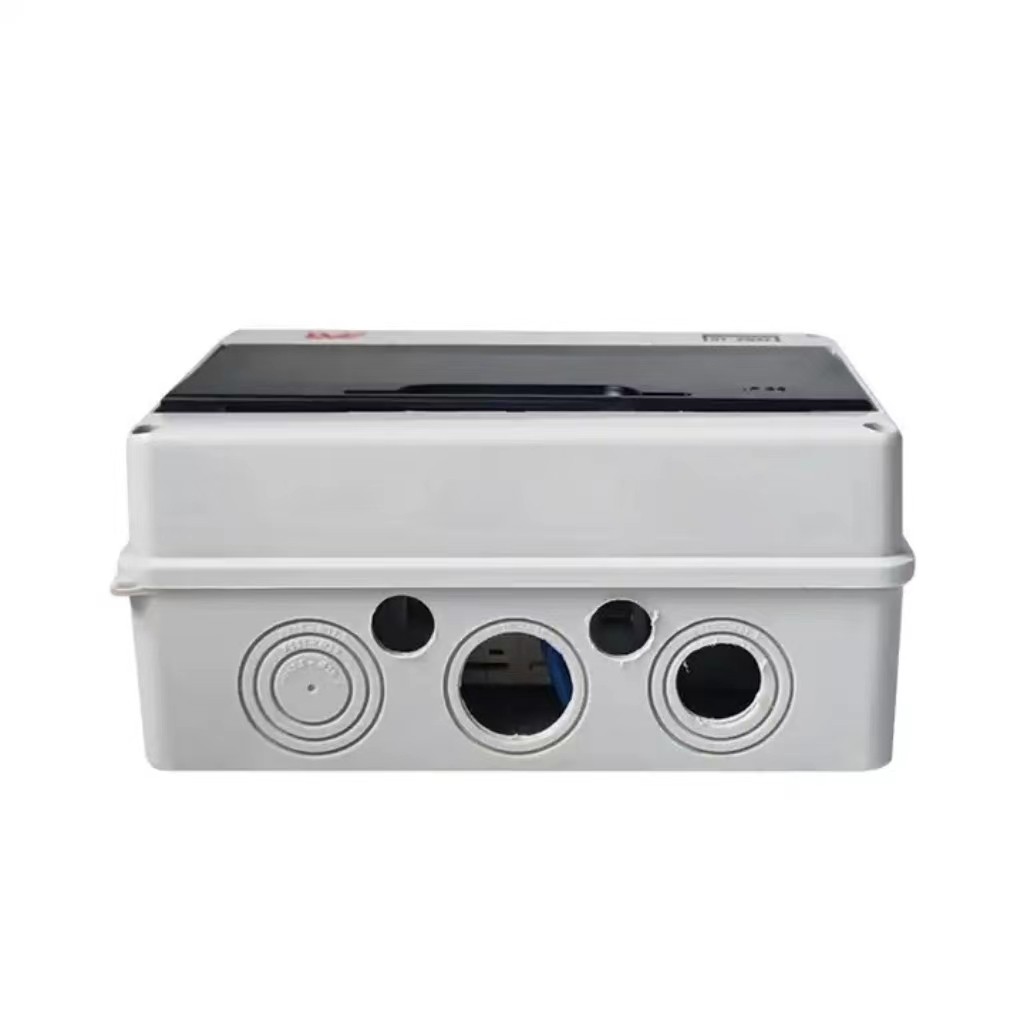

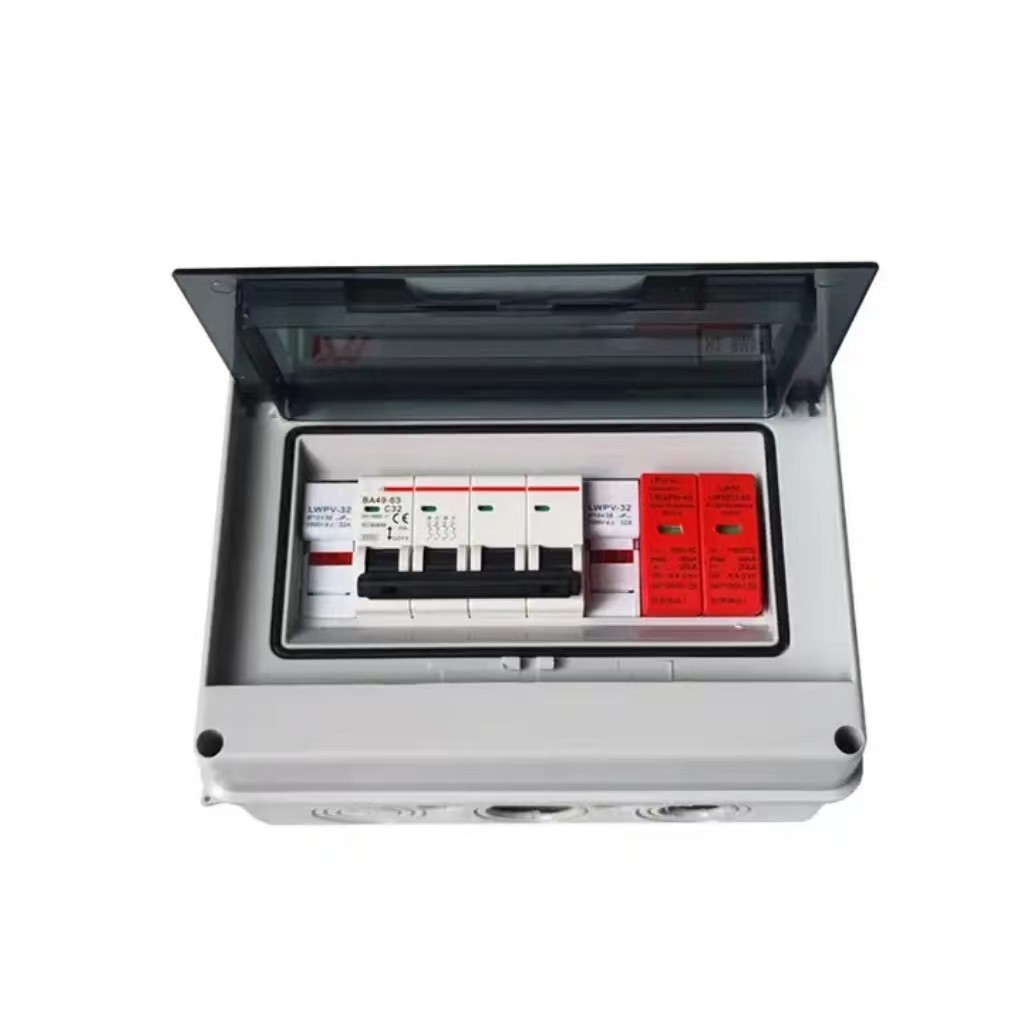

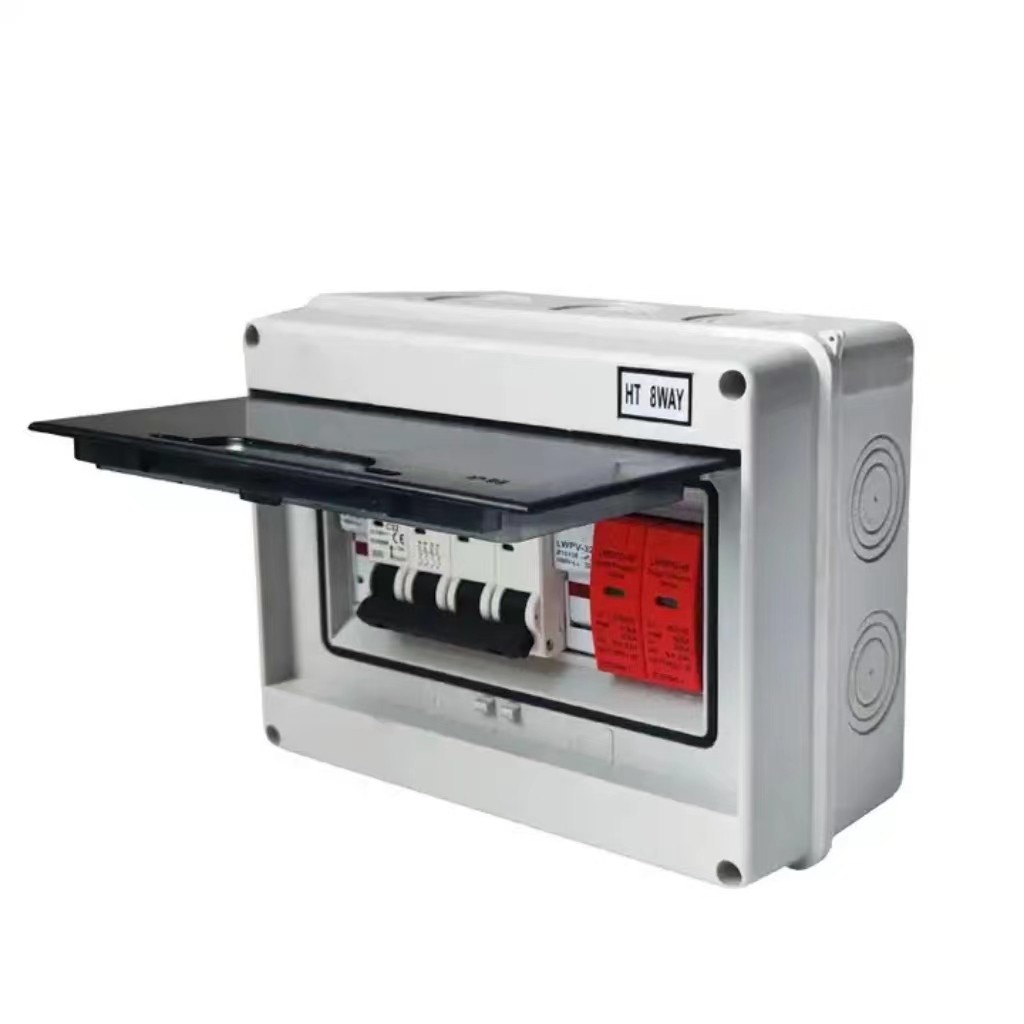

PV1-1 Solar PV Combiner box
PV String DC Combiner Boxes are key components in the PV Solar power systems, which are placed between Solar Modules and the Inverters.
Specification
Name
Solar Combiner Box
Model Number
PV1-1
Input
1
Onput
1
Rated working voltage
DC 500V 1000V
Protection Level
IP65
Warranty
2 Years
Installation Site
Solar Energy Sation
Advantage:
Easy machining with normal tools
IP65
Wide operation temperature range
Fire Resistance
Non-conductive
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments
Powder coated Chromium-Nickel Steel enclosure:
Easy machining with normal tools
Thickness ≥1.2mm Powder coated cold rolled
Surface finish: with the process of pickling and parkerising 80-120 μm
IP65 waterproof, dust proof,anti-corrosion and UV resistance
Durable: HRPV series combiner boxes are built to withstand harsh
environmental exposure
Suit for long distance transport

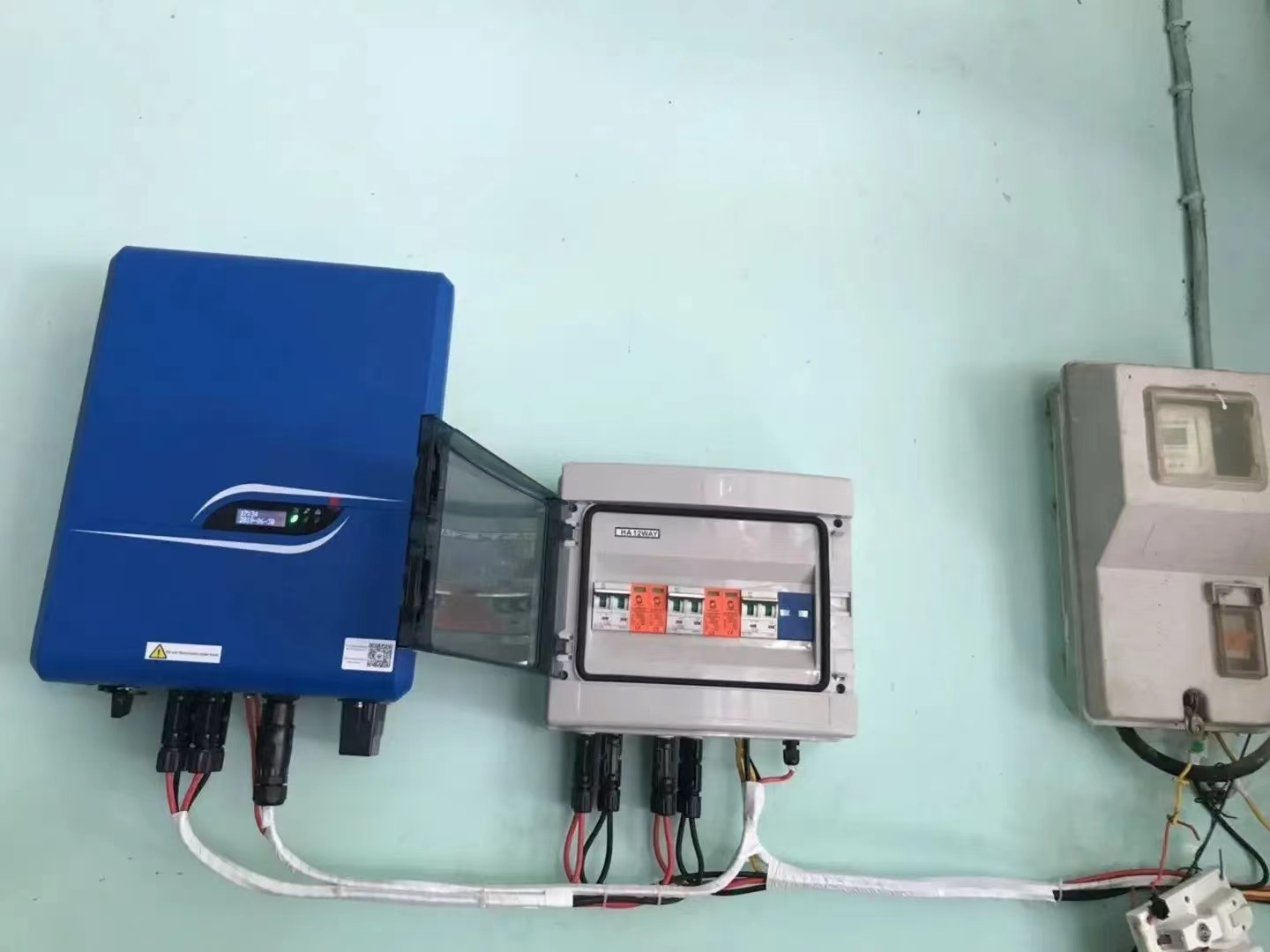

The PV bus box Simplify the physical wiring between solar panel and inverter.
Fault current protection for each PV String.
Fault alarm.
Easy installation and maintenance.
