Description
Tip:
If the cross-sectional area of the aluminum pv wire is increased to 150% of the copper conductor cross-sectional area, not only the electrical performance is the same as that of the copper conductor, but the tensile strength also has certain advantages over the copper conductor, and the weight is light.
Therefore, aluminum alloy solar cable is suitable for used in photovoltaic projects, off/on gird.
EG: 4mm2 copper cable=6mm2 aluminum cable
6mm2 copper cable=10mm2 aluminum cable

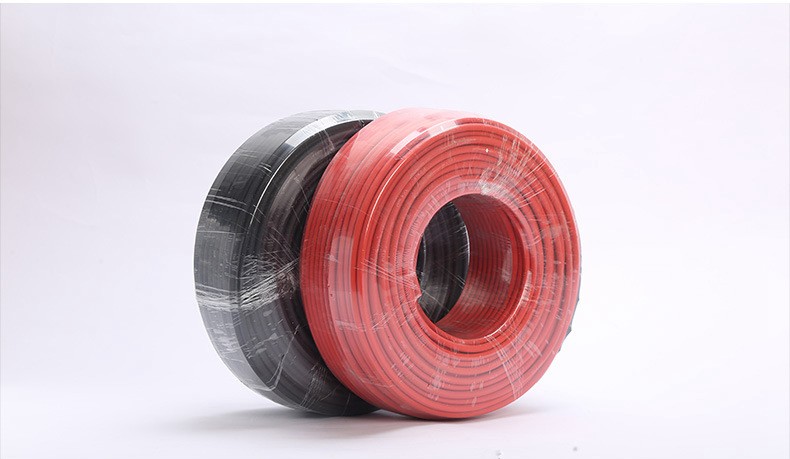

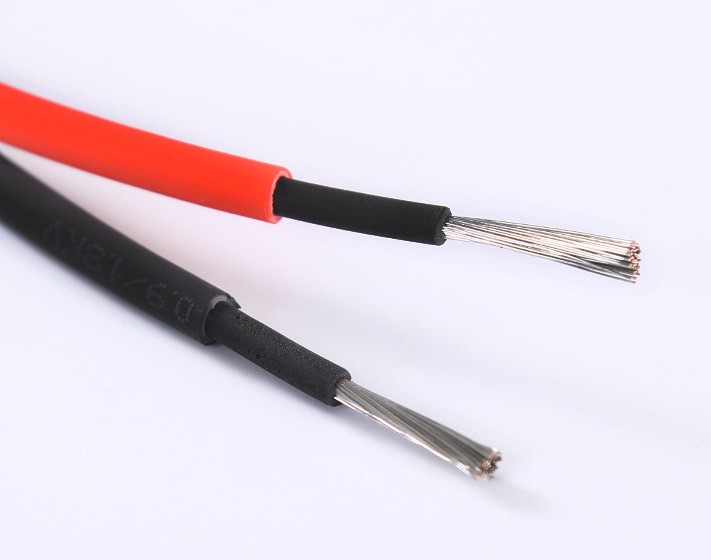

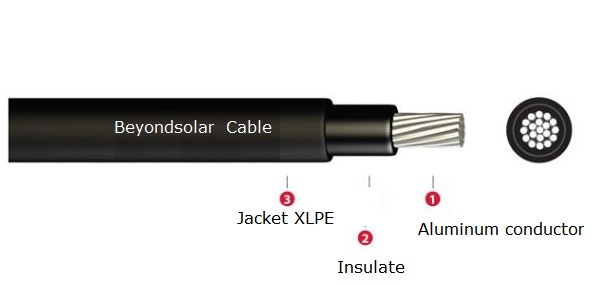

Cable Structrue
Description
Class 5 Aluminum alloy conductor
125℃ irradiation cross-linked polyolefin insulation
125℃ irradiation cross-linked polyolefin sheath
Application
Suited for connecting photovoltaic system components inside and
outside of building and equipment
Reference standard
PPP 11029A
Contruction E.G 6mm2
Conductor: Aluminum alloy wire
Construction and diameter(mm): 84/0.30mm
Stranded diameter(mm): 3.4mm
Nominal Thickness(mm): 0.70mm
Min.Thickness(mm): 0.53mm
Nominal Thickness(mm): 0.80mm
Min.Thickness(mm): 0.58mm
Overall diameter(mm): 6.3mm
Color
Insulation color：
White
Outer sheath color：
Red / Black
Performance
Electrical characteristics:
Max. Conductor DC resistance at 20℃(Ω/km) :5.23
Min. Insulation resistance at 20℃(MΩ.km):610
Min. Insulation resistance at 90℃(MΩ.km) :0.610
Dielectric strength （AC 6.5kV/5min）: Not break down
Weather resistance/UV resistance: Meet
Low temperature resistance （-40℃）: No cracking
Ozone resistance at complete cable: Meet
Fire Performance ( IEC 60332-1): Meet
Environmental performance (RoHS): Meet
Characteristics
Maximum rated temperature of cable conductor (℃) 120
Minimum installation temperature (℃) -25
Ambient temperature when cable is used (℃) -40
Rating Voltage(V) DC 1.5kV

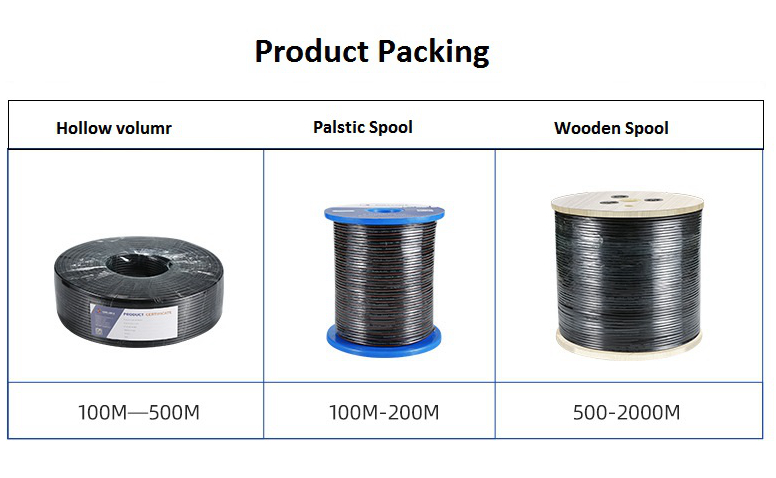

Packing & shpping
Company info:

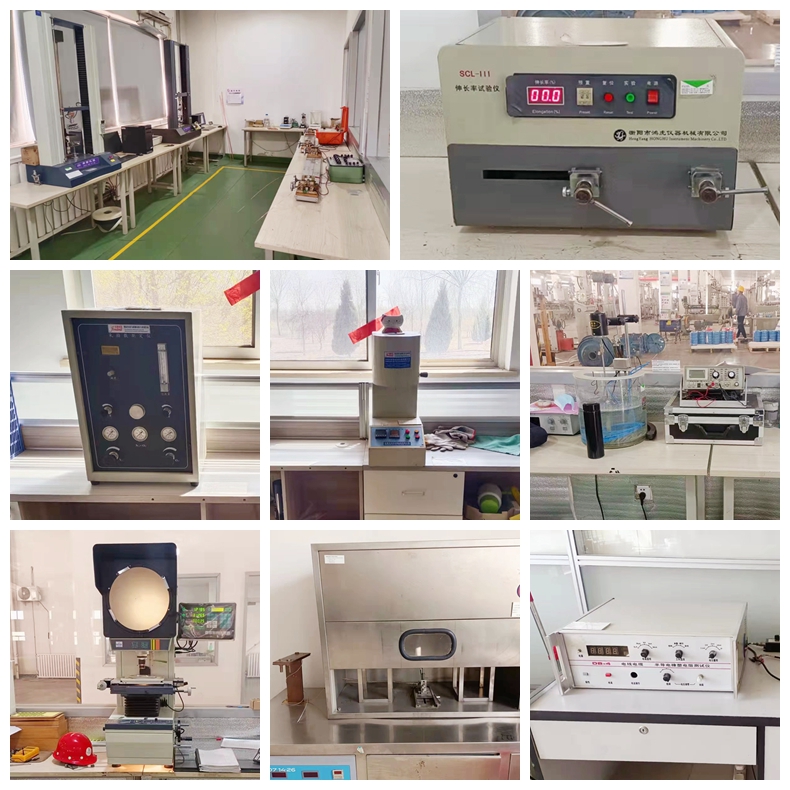

We have full set equipment of testing

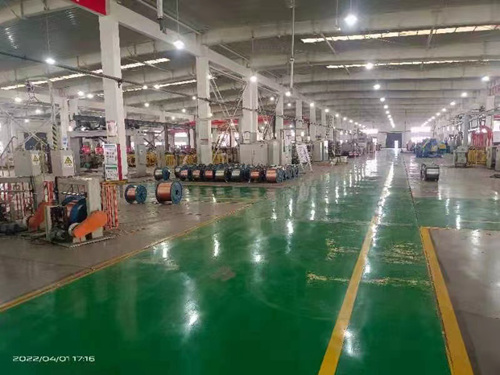

Click picture to see cable production
Contact us!
You will get your Free quote in 1 hour. Free sample delivery in 7days.
Sales: Molly Liang
Email/skype:Molly.l@beyondsolar.cn
Mob/Whatsapp:+86-18576852516
FAQ
Q:Can Aluminum pv cable replace copper pv cable?
A:https://www.beyondsolar.cn/Can-aluminum-alloy-PV-cable-replace-copper-PV-cable-n.html
